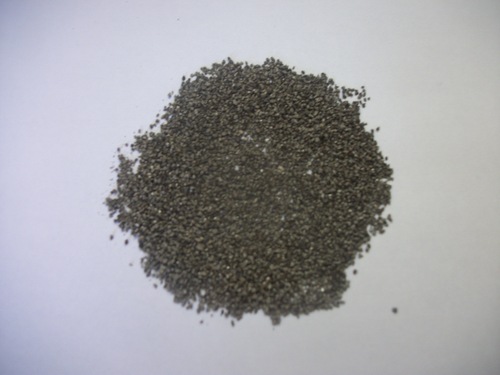

Steel Cut Wire Shot

Steel Cut Wire Shot
Steel Cut Wire Shot
Send Inquiry
Product Code : 101
Brand Name : SPECIAL AGENCIES
Price And Quantity
  • Minimum Order Quantity
  • 100
  • Unit of Measure
  • Kilograms/Kilograms
Product Description

From our extensive range of products, we supply supreme quality range of Steel Cut Wire Shot. For manufacturing this wire shot, our vendors' professionals utilize superior quality steel with the help of pioneering technology in accordance with the defined market standards. The provided wire shot is widely used in various engineering industries for refining purpose. The offered Steel Cut Wire Shot is available in varied specifications as per the application requirements of the customers at reasonable rates.

Features:

  • Hardness

  • Uniform size

  • Light weight

  • Rust proof

Specifications:

SIZE



Cut Wire

Cut Wire

Cut Wire



Designation

Designation

Designation

MATERIAL

( inch )

( mm )

Size

CW 12

0.30

S-110

Mild Steel

Type 1020

CW 14

0.35

S-130

Carbon Steel

Type 1070

CW 17

0.45

S-170

Stainless Steel

Type 302, Type 304,

CW 20

0.50

S-190


Type 430

CW 23

0.60

S-230



CW 28

0.70

S-280



CW 32

0.80

S-330

HARDNESS RANGE

CW 35

0.90

S-360

Mild Steel

24-30 HRC

CW 41

1.00

S-390

Carbon Steel

40-50/45-55 HRC

CW 47

1.20

S-460

Stainless Steel 302/304

32 HRC minimum

CW 54

1.40

S-550



CW 62

1.60

S-660








SHAPES

DESCRIPTION


SPECIFICATION- IS 5873/1970


As Cut (U)

Cylindrical with Shape Edge


SAE J 441 C W S


Normal ( C )

Corner pre round


SAE J 441 C W S


Conditioned (3C)

Almost Spherical


AMS 2431 / 3/ 4 & 8


COMPARISON BETWEEN CAST STEEL SHOTS & STEEL CUT WIRE SHOTS

CHARACTERISTIC

CAST STEEL SHOTS

STEEL CUT WIRE SHOTS

Raw Material

Basic Raw Material has far lower physical property & Composition, obviously causes blow holes & porosity which makes the shots to fracture into small particle.

Raw Material is of exact composition, with-out any material defect (blow holes, porosity, shrinkage, etc), & wears out nominally during it's use

Dust Generation

Higher Dust Generation

No Dust Generation

Environment Friendly

Deteriorates environment of work place and it's dust is considered hazardous to health

Environment Friendly

Performance Consistency

Consistent Performance not possible due to fast size deterioration

Consistent Performance

Time Consumption

Higher Consumption in shot Blasting/peening increases working cycle time

Reduced Time for Shot Blasting/Peening

Shot Consumption

Higher Consumption

Consumption decreases i.e.33% to 67% less to cast shots (case to case basis)

Inventory Cost

Higher Consumption requires high Inventory,more money & space as well

Lower Inventory required for the same job.

Operation Cost

Higher Operation cost

Lower Operation cost

Shape Variations

Shot being produced are of mixed size hence product is a mix of various spherical sizes.

All shot being made out of same wire are identical,no variation of size anywhere.

Hardness Variation

They have larger variation in hardness

Uniform hardness throughout

Micro-Structure

In Micro-structure carbide always there

Micro-structure is only Tempered martensite.

Grain Size

Grain size of cast shot is unstabilized

Due to drawing passes grain size is stabilised.
